Musculoskeletal Ultrasound in the Diagnosis of Gout and Crystal Deposition Diseases

Musculoskeletal ultrasound (MSK US) has become an essential tool in the diagnosis and management of various musculoskeletal disorders. Among its many applications, MSK US plays a pivotal role in diagnosing gout and other crystal deposition diseases. These conditions, characterized by the accumulation of crystals in joints and tissues, can lead to severe pain and disability if not accurately diagnosed and treated. This blog post explores the advantages, applications, and future potential of musculoskeletal ultrasound in the diagnosis of gout and crystal deposition diseases.

Understanding Gout and Crystal Deposition Diseases

Gout

Gout is a type of inflammatory arthritis caused by the deposition of monosodium urate (MSU) crystals in the joints. It typically presents with sudden, severe episodes of joint pain, swelling, and redness, often affecting the big toe. Chronic gout can lead to joint damage and the formation of tophi, which are deposits of urate crystals that can occur under the skin or around joints.

Other Crystal Deposition Diseases

Apart from gout, other crystal deposition diseases include calcium pyrophosphate deposition disease (CPPD), also known as pseudogout, and basic calcium phosphate (BCP) crystal deposition. These conditions can mimic other forms of arthritis, making accurate diagnosis crucial for appropriate management.

Advantages of Musculoskeletal Ultrasound in Diagnosing Crystal Deposition Diseases

1. Non-Invasive and Radiation-Free

Musculoskeletal ultrasound is a non-invasive imaging technique that does not involve exposure to ionizing radiation. This makes it a safe and preferable option, particularly for patients requiring frequent monitoring or those who cannot undergo other imaging modalities due to contraindications.

2. Real-Time, Dynamic Imaging

MSK US provides real-time imaging, allowing clinicians to visualize joint structures and detect crystal deposits dynamically. This real-time capability is particularly useful during acute gout flares, where immediate assessment is necessary.

3. High Sensitivity and Specificity

Ultrasound has high sensitivity and specificity for detecting crystal deposits. It can identify even small amounts of urate and calcium crystals, which might be missed by other imaging techniques. This precision enhances diagnostic accuracy, leading to better-targeted treatments.

4. Cost-Effective and Accessible

Compared to MRI or CT scans, musculoskeletal ultrasound is more cost-effective and widely available. Its lower cost and accessibility make it an ideal choice for both initial diagnosis and follow-up evaluations.

Applications of Musculoskeletal Ultrasound in Diagnosing Gout and Crystal Deposition Diseases

1. Detection of MSU Crystals in Gout

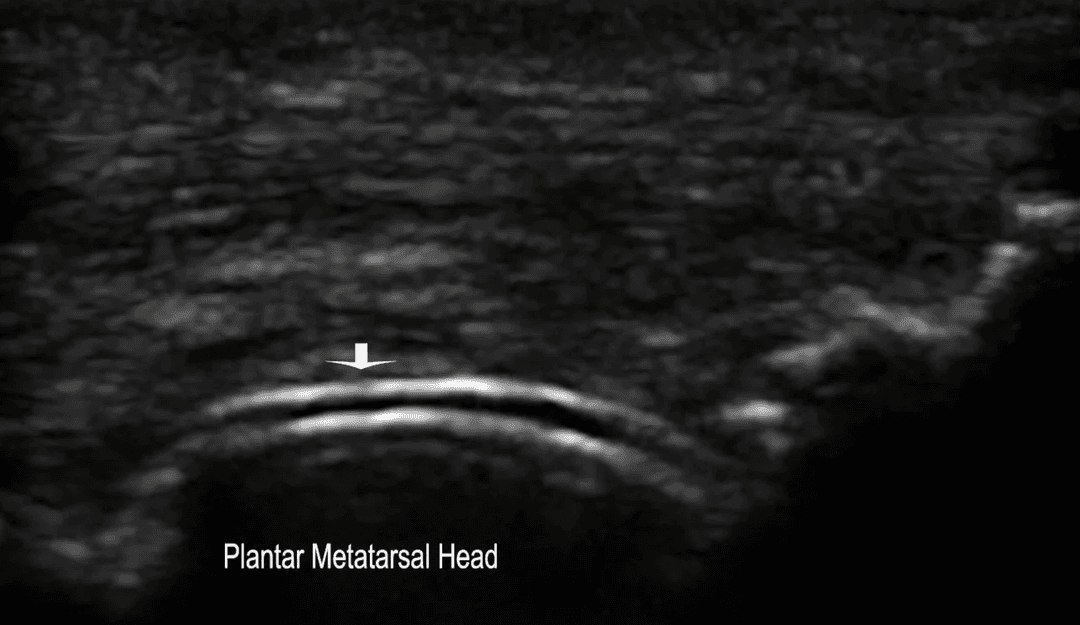

MSK US is highly effective in detecting monosodium urate (MSU) crystals in patients with gout. The ultrasound can visualize characteristic features such as the "double contour sign," where urate crystals deposit on the surface of cartilage. It can also detect tophi and monitor their size and changes over time.

2. Identification of Calcium Pyrophosphate Crystals in CPPD

For patients with calcium pyrophosphate deposition disease (CPPD), ultrasound can identify crystal deposits within the cartilage, known as chondrocalcinosis, and in the synovial fluid. These deposits appear as hyperechoic (bright) areas on the ultrasound, aiding in distinguishing CPPD from other types of arthritis.

3. Differentiating Crystal Deposition Diseases from Other Arthritic Conditions

Crystal deposition diseases can mimic the symptoms of other arthritic conditions, such as rheumatoid arthritis or osteoarthritis. Musculoskeletal ultrasound helps differentiate these conditions by identifying specific crystal deposits and associated features, ensuring accurate diagnosis and appropriate management.

4. Monitoring Treatment Response

Once a diagnosis is established, MSK US can be used to monitor the response to treatment. For instance, in gout, ultrasound can track the reduction in tophi size and the clearance of urate crystals from the joints, providing visual confirmation of treatment efficacy.

Future Potential of Musculoskeletal Ultrasound in Crystal Deposition Diseases

The future of musculoskeletal ultrasound in diagnosing and managing crystal deposition diseases is promising, with continuous advancements in technology and techniques. Portable ultrasound devices are becoming more sophisticated, allowing for bedside and point-of-care assessments. Additionally, the integration of artificial intelligence (AI) in ultrasound imaging holds potential for enhancing diagnostic accuracy and efficiency.

AI algorithms can assist in the interpretation of ultrasound images, identifying subtle abnormalities that may be overlooked by the human eye. This could be particularly beneficial in detecting early-stage crystal deposits, enabling prompt and effective intervention. Furthermore, machine learning models can predict disease progression and treatment response, facilitating personalized patient care.

Conclusion

Musculoskeletal ultrasound is a powerful and versatile tool in the diagnosis and management of gout and other crystal deposition diseases. Its non-invasive nature, real-time imaging capability, high sensitivity, and cost-effectiveness make it an ideal choice for detecting crystal deposits and monitoring treatment response. As technology continues to advance, the role of MSK US in diagnosing and managing these conditions is set to expand, promising improved patient outcomes and enhanced quality of care. By integrating musculoskeletal ultrasound into clinical practice, healthcare providers can offer more precise, effective, and personalized treatment for patients with gout and crystal deposition diseases.
